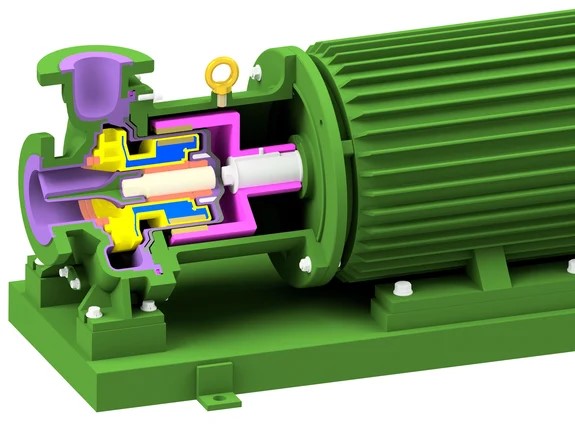

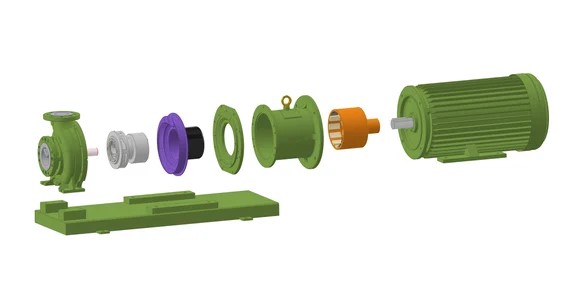

- A. Featuring a patented integral V shape front support that is part of the metal casing armour and then PFA lined. The rear of the shaft is supported in the PFA lined containment shell and reinforced by a metal support ring and high-strength carbon fibre composite cover. This superior design means a longer life resulting in far lass downtime and increased productivity.
- B. The PFA lining is formed directly onto the metal armour and designed to ensure the PFA material remains adhered to the armour even under low absolute pressure.
- C. The casing volute is designed to have an evenly distributed hydraulic pressure, providing a balanced radial loading on the impeller.
- D/E. The impeller and magnet capsule are formed as one piece which eliminates the possibility of the impeller loosening. For further operational stability and rigidity, a metallic structure is embedded from the magnet capsule to the impeller blade further increasing the pump's operational life.
- F. The stationary shaft design allows for a very simple construction which makes maintenance and repairs very simple.
- G. The plastic containment shell is reinforced with a carbon fibre composite cover. There is no eddy current loss, so no additional heating of the pumped chemical.
- H. Inner magnets are constructed from Samarium Cobalt (SmCo) in order to withstand high operating temperatures without experiencing demagnetization. High strength neodymium (NdFeB) is then used for the drive magnet to provide high torque transmission.
- I. Simple and quick maintenance access without the need to remove the pump casing from the piping.
- J. Designed to ISO2858, ISO5199, ISO15783, and EN809 standards.
CREST PUMPS LIVSTIDSGARANTI
Uansett hvor gammel pumpen din blir – i det usannsynlige tilfellet at du skulle få et problem – står våre ingeniører klare til å feilsøke og hjelpe deg i gang igjen.
Derfor trenger du aldri å bekymre deg for uforutsett driftsstans med en pumpe fra Crest Pumps.
Ta kontakt med oss i dag for å diskutere dine behov for kjemikaliepumper – eller bestill en gratis inspeksjon på stedet for å se hvor mye tid og penger du kan spare!
